Original residue dewatering pump capable of pumping down to floor level. Even the smallest puddle can be pumped dry. Ideal for complete drainage of flat surfaces where a sump is not available.
You are here:
- Slovenija >
- Construction Dewatering >
- Construction >
- Family
Family | 1-phase / 50Hz

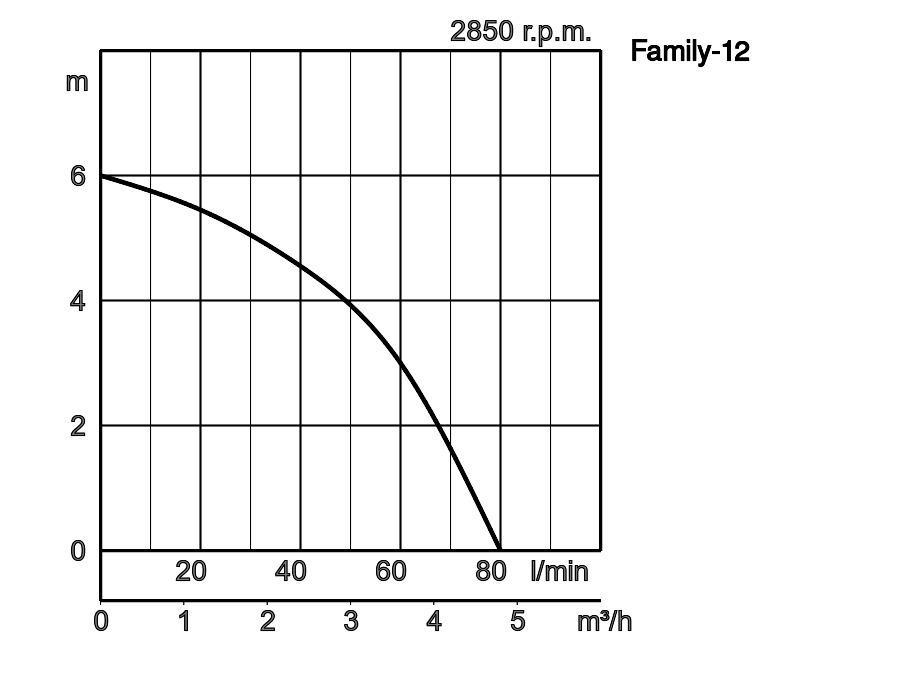

| Model | Colour code curve | Bore mm | Motor output kW | Rated current A | Head max. m | Capacity max. l/min | Dry weight kg w/o cable | Max. solid handling ø mm | Pressure resistance max. m | Cable length m |
|---|---|---|---|---|---|---|---|---|---|---|
| Family-12 |
1
|
25 | 0,1 | 1,3 | 6,0 | 80 | 3,4 | 6 | 5 | 10 |
| ø Discharge bore mm | 25 | |||
|---|---|---|---|---|
| Pumping Fluid | Temperature | 0-40°C | ||
| Type of Fluid | Clear Water | |||
| Pump | Compo- nents | Impeller | Vortex impeller | |
| Shaft Seal | Mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Glass fibre reinforced plastic | ||
| Casing | AAS | |||
| Shaft Seal | Silicon carbide in oil bath | |||
| Motor | Insulation | Insulation class E | ||
| Type, Poles | Induction motor, 2 poles, IP68 | |||
| Motor Protector (built-in) | Circle thermal cut-out | |||
| Phase / Voltage | Single phase 230V / 50Hz | |||
| Lubrication | Turbine oil (ISO VG15) | |||
| Material | Casing | AAS | ||
| Shaft | Stainless steel EN-X30Cr13 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Hose coupling | |||
Dimensions in mm:
-
-
- Family-12
W1: lowest running water level
| Model |
|---|
| Family-12 |
In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website
www.tsurumi.eu/english/applications.htm.
