Tsurumi’s expertise has developed a new series which combines high tech materials for maximum durability, yet lightweight and portable. This pump is equally suited for construction site dewatering as well as installation into facilities.
You are here:
- Slovenija >
- Construction Dewatering >
- Flood Protection >
- KTV
KTV | 3-phase / 50Hz
Downloads
| Model | Colour code curve | Bore mm | Motor output kW | Rated current A | Head max. m | Capacity max. l/min | Dry weight kg w/o cable | Max. solid handling ø mm | Pressure resistance max. m | Cable length m |
|---|---|---|---|---|---|---|---|---|---|---|

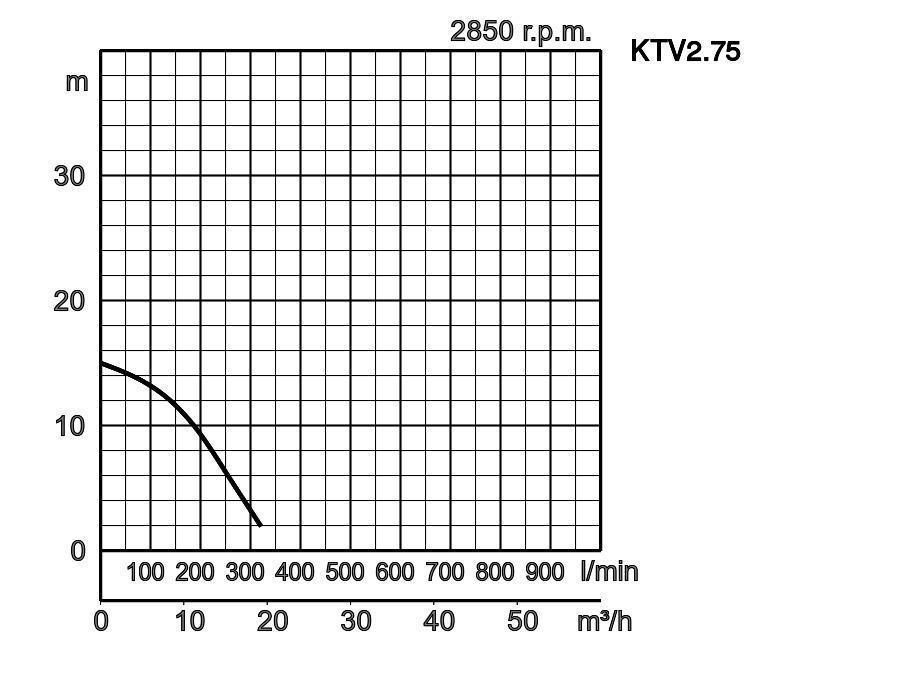

| KTV2.75 | 50 | 0,75 | 2,0 | 15,0 | 320 | 12,5 | 6 | 10 | 10 | |

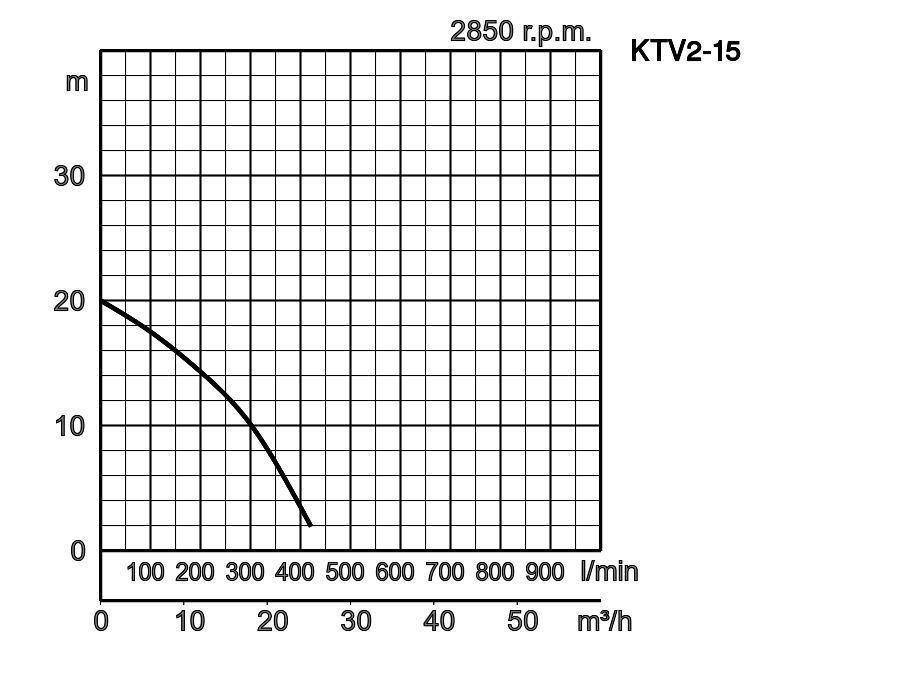

| KTV2-15 | 50 | 1,5 | 3,3 | 20,0 | 420 | 21,0 | 8,5 | 25 | 20 | |

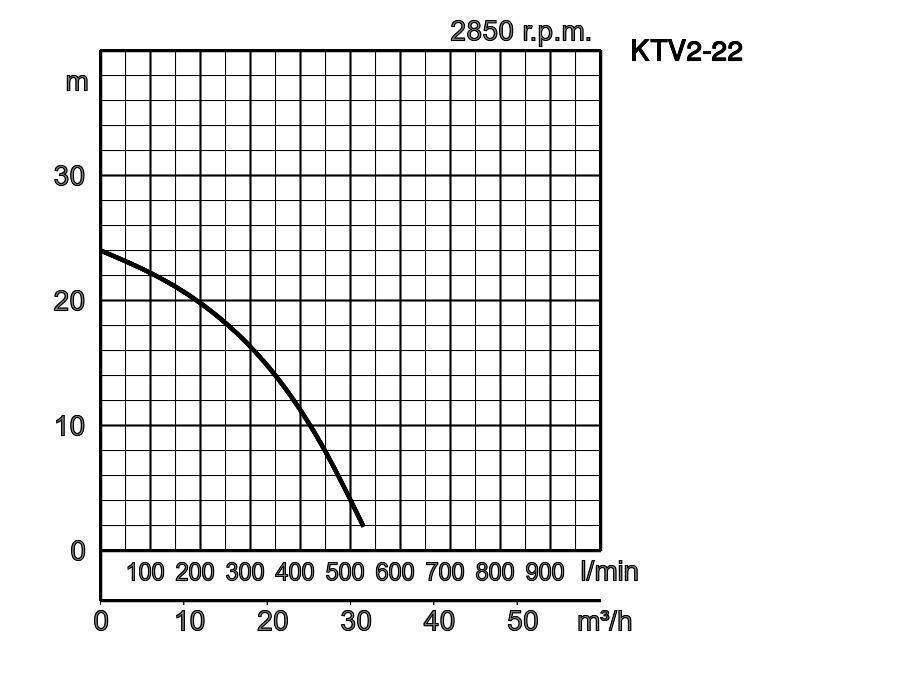

| KTV2-22 | 50 | 2,2 | 4,3 | 24,0 | 525 | 23,0 | 8,5 | 25 | 20 | |

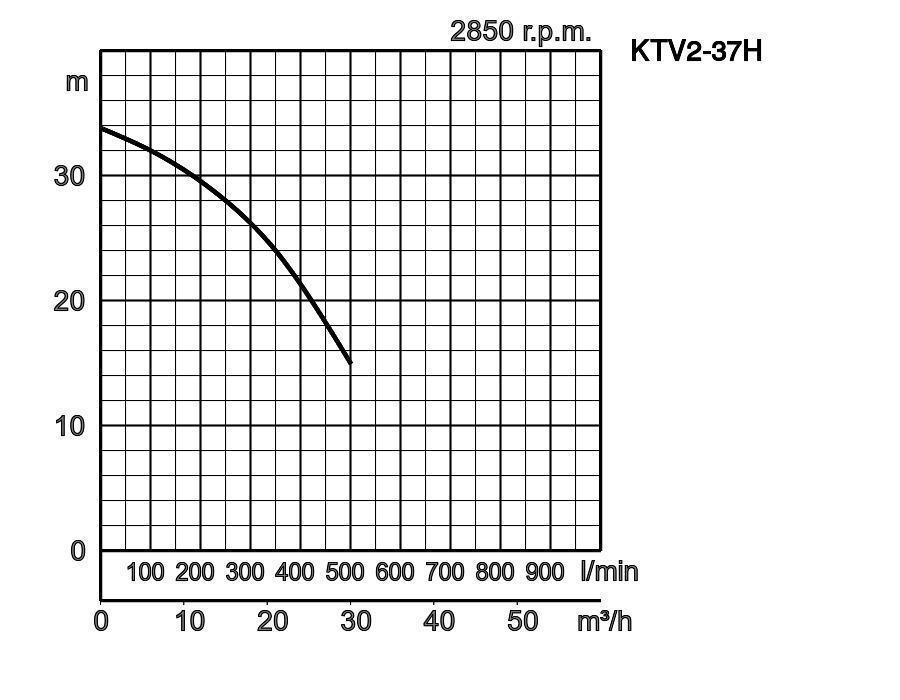

| KTV2-37H | 50 | 3,7 | 7,4 | 33,8 | 500 | 36,0 | 8,5 | 25 | 20 | |

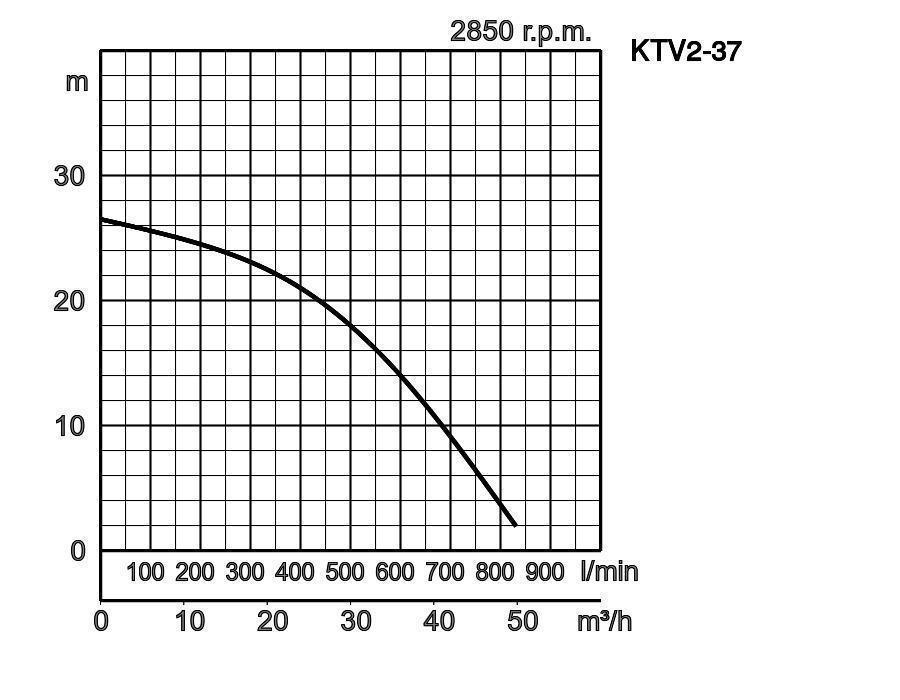

| KTV2-37 | 80 | 3,7 | 7,4 | 26,5 | 830 | 36,0 | 8,5 | 25 | 20 | |

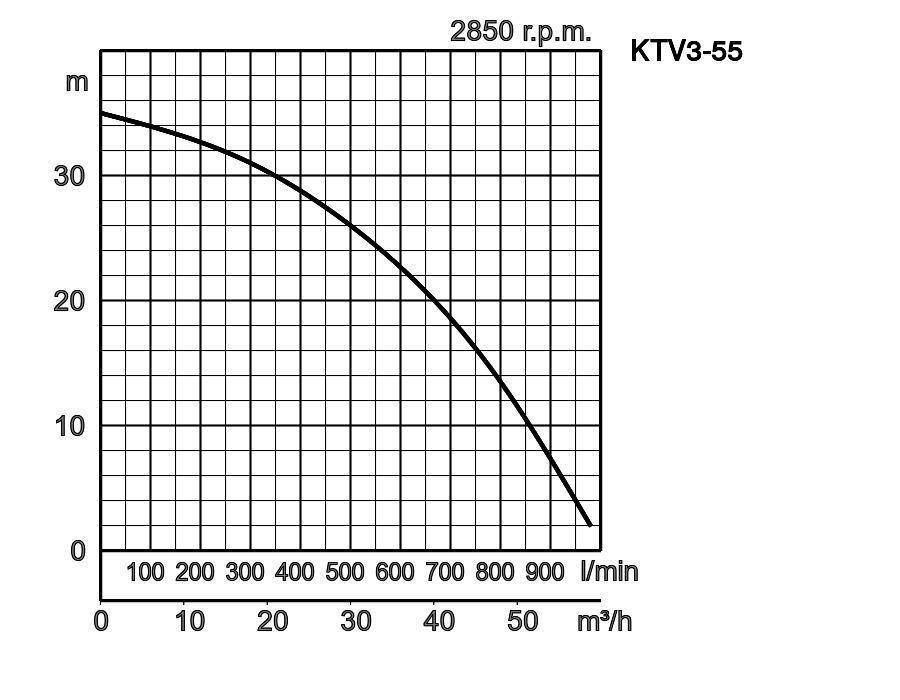

| KTV3-55 | 80 | 5,5 | 11,0 | 35,0 | 980 | 47,0 | 8,5 | 25 | 20 |
KTV2.75_1.pdf
| ø Discharge bore mm | 50, 80 | |||
|---|---|---|---|---|
| Pumping Fluid | Type of Fluid | Spring water, Rain water, Ground water, Sand carrying water | ||
| Temperature | 0-40°C | |||
| Pump | Compo- nents | Impeller | Semi-Vortex impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Urethane rubber, Ductile iron casting EN-GJS-700-2 | ||
| Casing | Synthetic rupper | |||
| Shaft Seal | Silicon carbide in oil bath | |||
| Motor | Lubrication | Turbine oil (ISO VG32) | ||
| Phase / Voltage | 3-phase / 400V / 50Hz / d.o.l. | |||
| Motor Protector (built-in) | Circle thermal cut-out | |||
| Type, Poles | Induction motor, 2 poles, IP68 | |||
| Insulation | Insulation class E | |||
| Material | Casing | Aluminium die casting | ||
| Shaft | Stainless steel EN-X30Cr13, Stainless steel EN-X6Cr13 | |||
| Cable | Rubber, NSSHÖU | |||
| Discharge Connection | Threaded flange/Hose coupling | |||
Dimensions in mm:
-
-
- KTV2-15
- KTV2-22
-
-
- KTV2.75
-
-
- KTV2-37
- KTV2-37H
- KTV3-55
W1: lowest running water level
| Model | A | A1 | B | B1 | D | H | W1 |
|---|---|---|---|---|---|---|---|
| KTV2.75 | 200 | 155 | 353 | 281 | 200 | 374 | 65 |
| KTV2-15 | 240 | 187 | 392 | 310 | 240 | 396 | 80 |
| KTV2-22 | 240 | 187 | 412 | 330 | 240 | 416 | 80 |
| KTV2-37H | 285 | 211 | 510 | 387 | 285 | 510 | 90 |
| KTV2-37 | 285 | 211 | 510 | 387 | 285 | 510 | 90 |
| KTV3-55 | 300 | 229 | 545 | 422 | 300 | 545 | 90 |
In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website
www.tsurumi.eu/english/applications.htm.
