The Tsurumi HSD-pump is a small and robust submersible contractor's pump.
You are here:
- Slovenija >
- Construction Dewatering >
- Sandpit Pumps >
- HSD
HSD | 1-phase / 50Hz

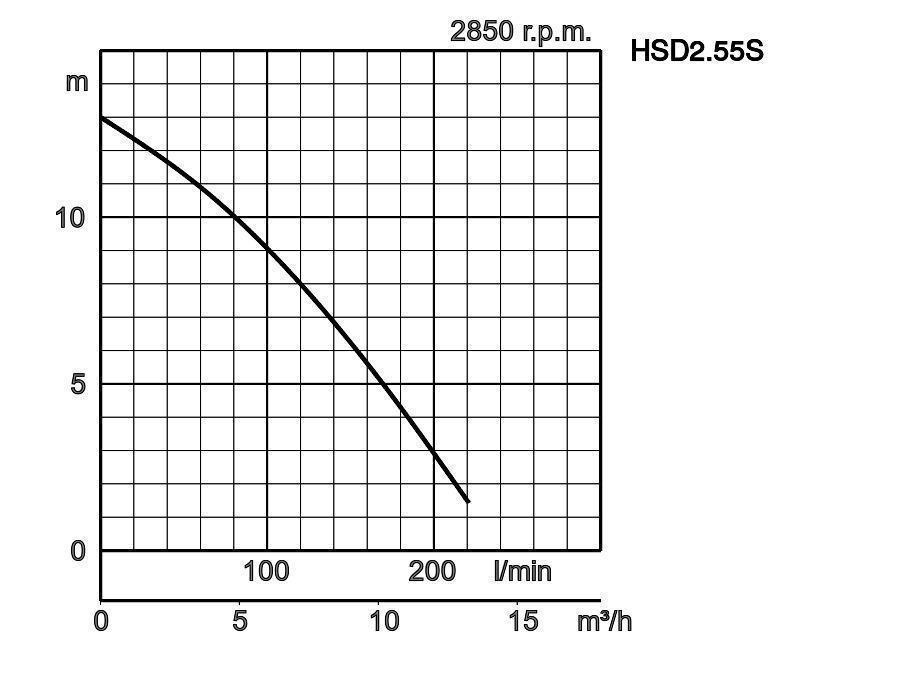

| Model | Colour code curve | Bore mm | Motor output kW | Rated current A | Head max. m | Capacity max. l/min | Dry weight kg w/o cable | Max. solid handling ø mm | Pressure resistance max. m | Cable length m |
|---|---|---|---|---|---|---|---|---|---|---|
| HSD2.55S | 50 | 0,55 | 3,4 | 13,2 | 220 | 14,0 | 10 | 10 | 10 |
HSD2.55S_1.pdf
| ø Discharge bore mm | 50 | |||
|---|---|---|---|---|
| Pumping Fluid | Type of Fluid | Sand carrying water, Sludge, Bentonite | ||
| Temperature | 0-40°C | |||
| Pump | Compo- nents | Impeller | Semi-Vortex impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Chromium iron casting | ||
| Casing | Ductile iron casting EN-GJS-700-2 | |||
| Shaft Seal | Silicon carbide in oil bath | |||
| Motor | Type, Poles | Induction motor, 2 poles, IP68 | ||
| Lubrication | Turbine oil (ISO VG32) | |||
| Insulation | Insulation class E | |||
| Motor Protector (built-in) | Miniature protector | |||
| Phase / Voltage | Single phase 230V / 110V / 50Hz | |||
| Material | Casing | Aluminium die casting | ||
| Shaft | Stainless steel EN-X6Cr13 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Threaded flange/Hose coupling | |||
Dimensions in mm:
-
-
- HSD2.55S
W1: lowest running water level
| Model | d | A | A1 | B | B1 | D | H | W1 |
|---|---|---|---|---|---|---|---|---|
| HSD2.55S | 50 | 241 | 200 | 171 | 97 | 186 | 421 | 105 |
In the event of abrasive and corrosive utilization, stronger wear and tear will take place naturally in certain components. In this regard, please pay attention to our website
www.tsurumi.eu/english/applications.htm.
