BZ | 3-phase / 50Hz

Kanallaufrad_BZ

Non-clog impeller allows large diameter of foreign matter with respect to discharge bore. This ensures that waste water and sewage are efficiently transferred. The impeller comes out with the motor when the motor is removed from the pump casing (a back-pull-out design, upto 3,7kW).

GROUP29

Downloads

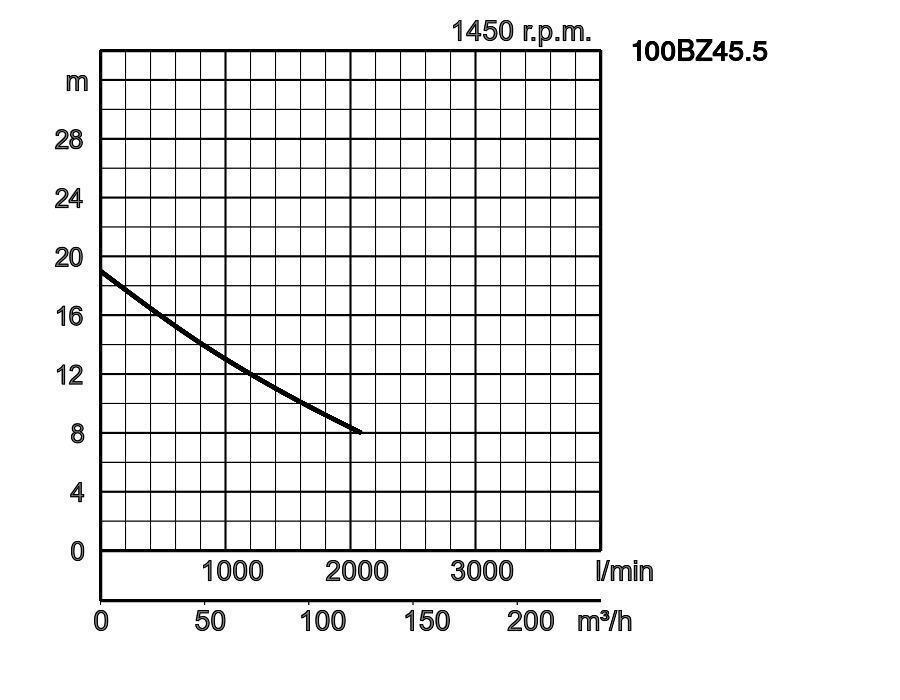

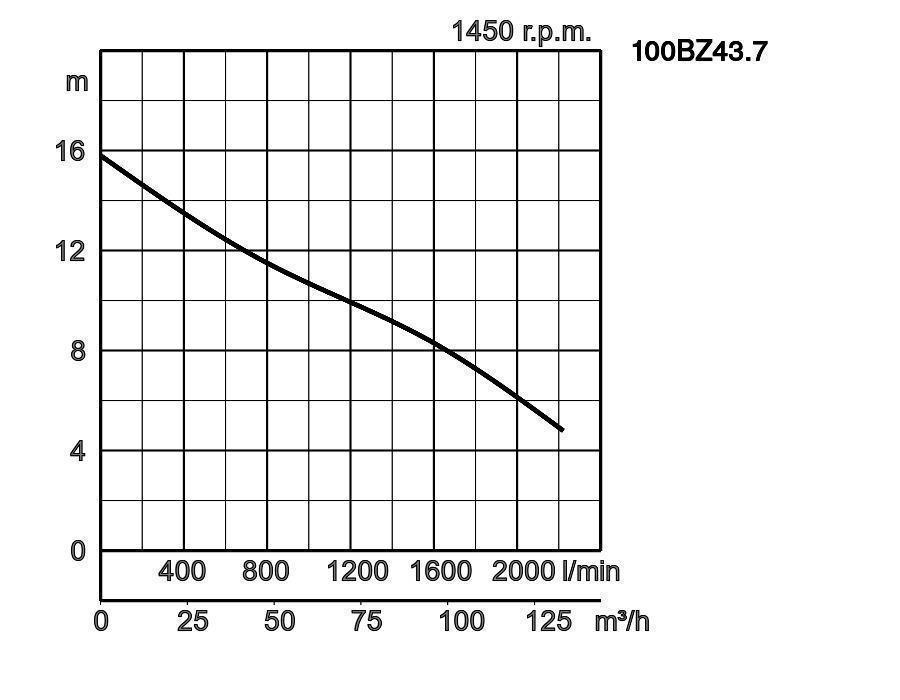

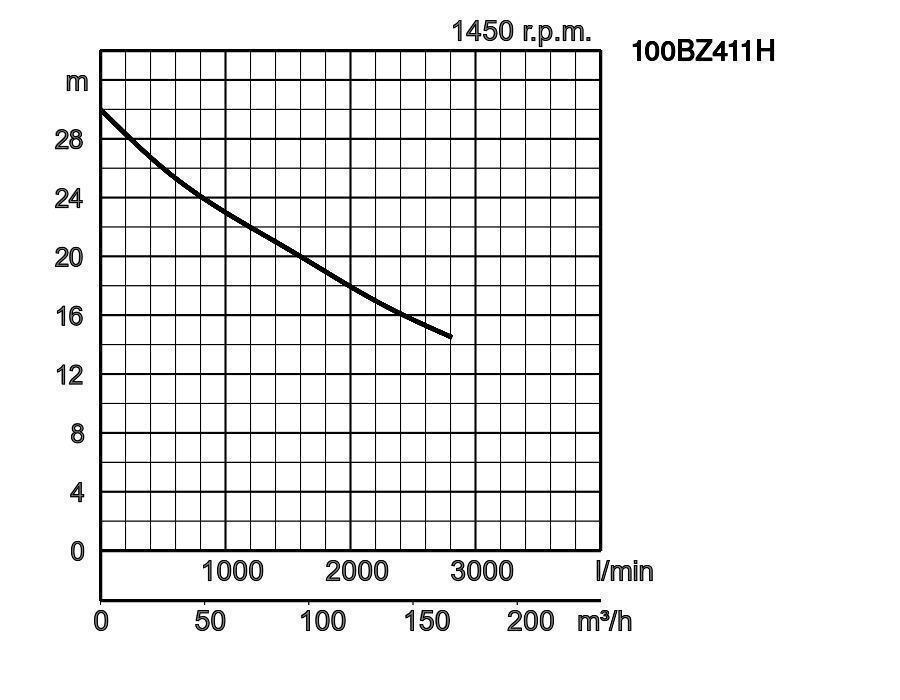

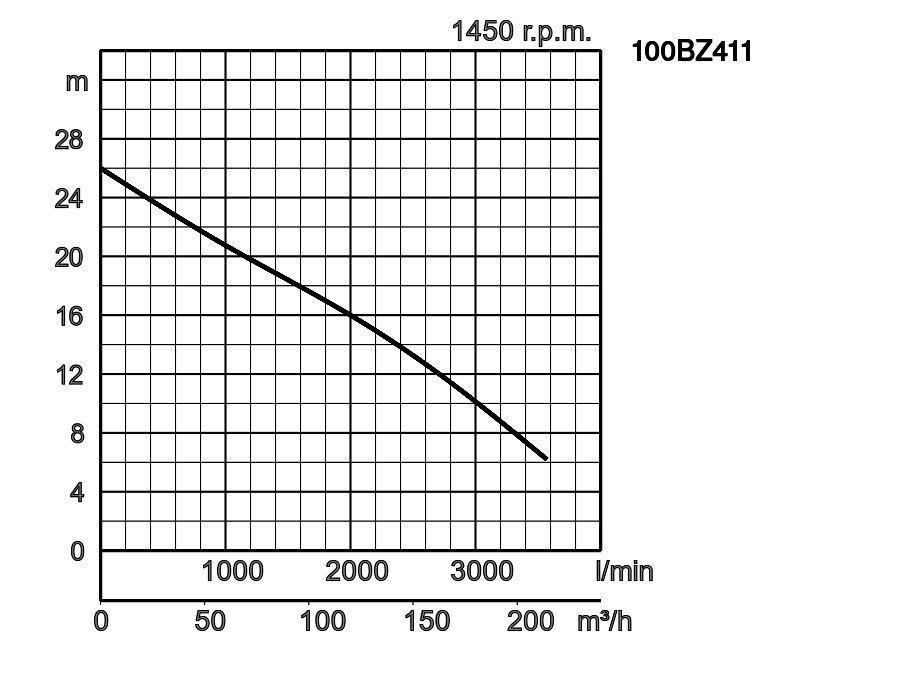

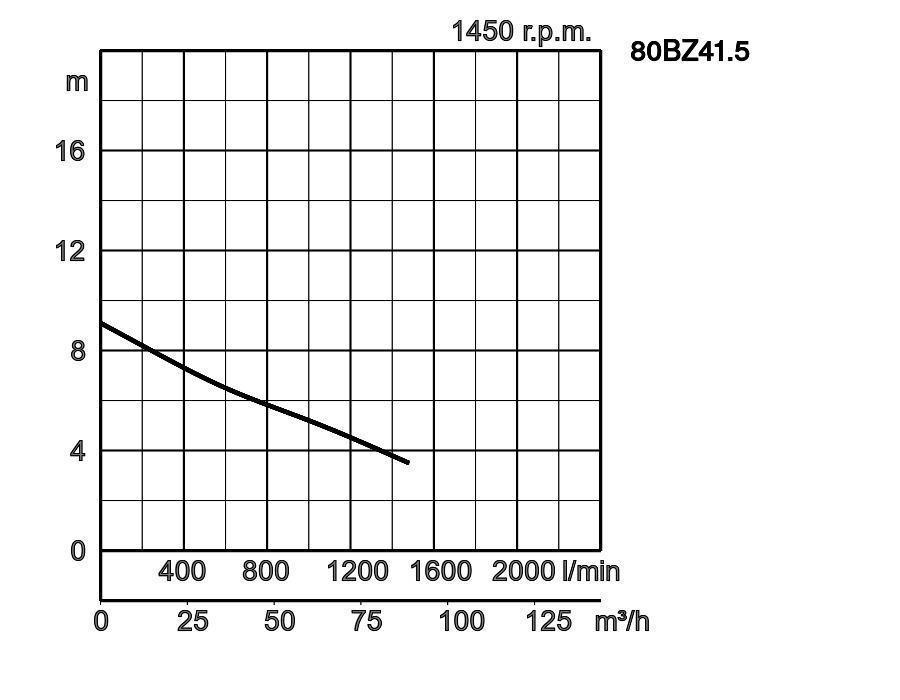

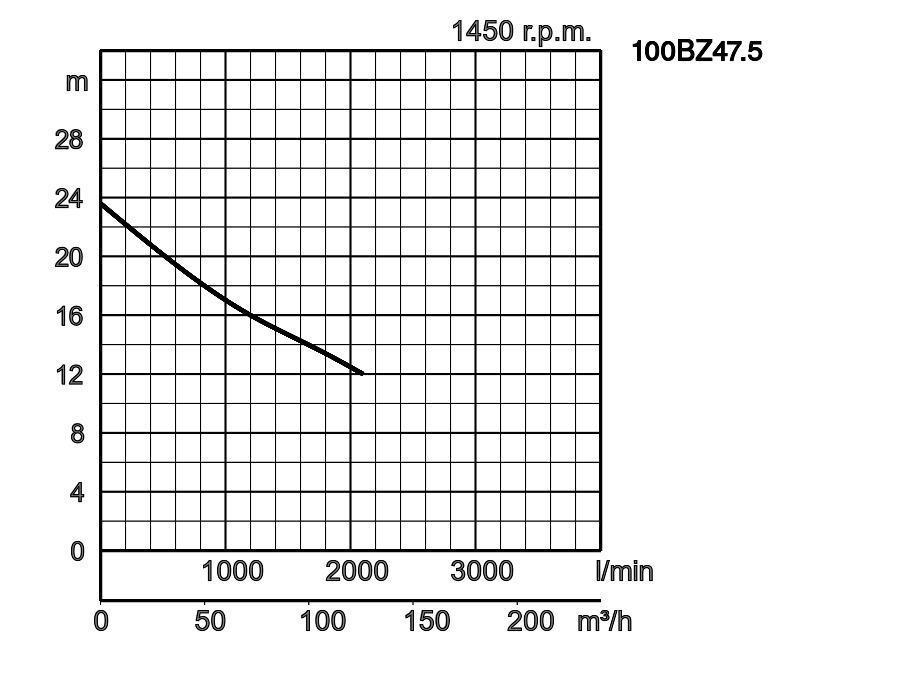

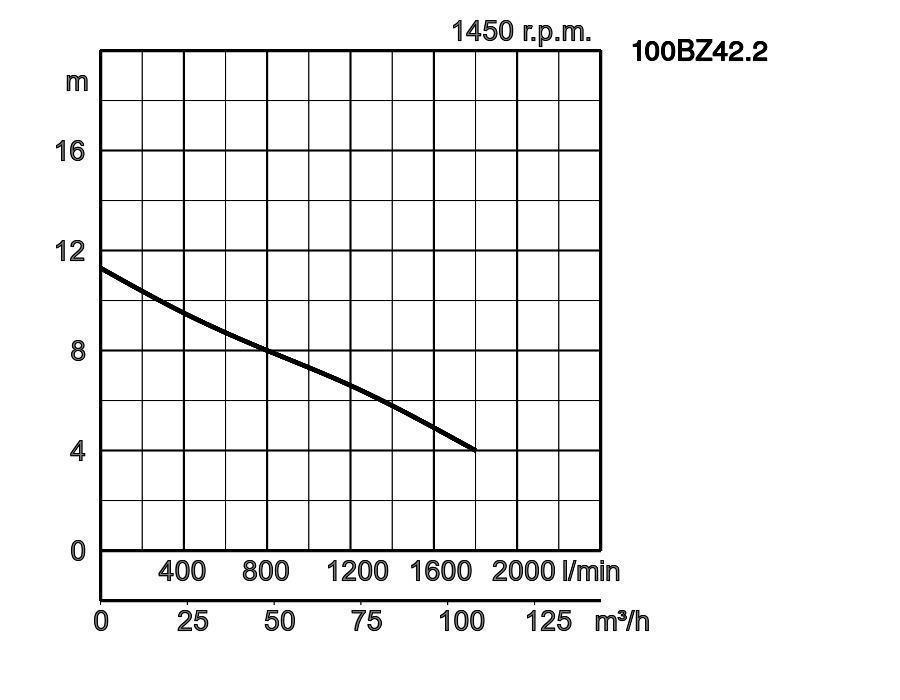

Kurve_U.jpg Kurve_U.jpg
ModelColour code curveBore mmPower output kWPhasesr.p.m.Head max. mCapacity max. l/minStarting methodDry weight kg *Impeller passage mm
free standingwith guide rail fittingfree standingwith guide rail fitting
80BZ41.5 TOS80BZ41.5
1
80 1,5 3 1450 8,5 1400 direct 78,0 74,0 80
100BZ42.2 TOS100BZ42.2
2
100 2,2 3 1450 11,3 1800 direct 80.0 74,0 80
100BZ43.7 TOS100BZ43.7
3
100 3,7 3 1450 14,7 2100 direct 100,0 94,0 80
100BZ45.5 TOS100BZ45.5
4
100 5,5 3 1450 19,0 2085 direct 175,0 168,0 80
100BZ47.5 TOS100BZ47.5
5
100 7,5 3 1450 23,6 2100 direct 194,0 187,0 80
100BZ411 TOS100BZ411
6
100 11 3 1450 26,0 3575 star/delta 219,0 212,0 80
100BZ411H TOS100BZ411H
7
100 11 3 1450 30,0 2810 star/delta 219,0 212,0 80
ø Discharge bore mm 80mm,100mm
Pumping Fluid Type of Fluid Municipal sewage
Temperature 0-40°C
Pump Compo- nents Impeller Non-clog impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material Impeller Grey iron casting EN-GJL-200
Casing Grey iron casting EN-GJL-200
Suction Plate Grey iron casting EN-GJL-200
Shaft Seal Silicon carbide in oil bath
Motor Lubrication Turbine oil (ISO VG32)
Insulation Insulation class F
Type, Poles Induction motor, 4 poles, IP68
Phase / Voltage 3-phase / 400V / 50Hz / d.o.l., 3-phase / 400V / 50Hz / s.d.
Motor Protector (built-in) Circle thermal cut-out, Miniature protector
Material Casing Grey iron casting EN-GJL-150
Shaft Stainless steel EN-X30Cr13
Cable Rubber, NSSHÖU
Discharge Connection Inside thread, JIS10K flange
Optional Accessories Guide rail fitting "TOS" (guide support, duck foot bend, lifting chain) / Bend and stand set for free standing types

Dimensions in mm:

  • 80BZ41.5
  • 100BZ42.2
  • 100BZ43.7
  • 100BZ411
  • 100BZ45.5
  • 100BZ47.5
  • 100BZ411H

W1: lowest running water level
ModelAA1A2A3BDD1D2HW1W2
80BZ41.5523302129190303273133140631235590
100BZ42.2551317129190328273133140631235590
100BZ43.7584327153200328289139150681235640
100BZ45.5716407204280380421205216925305790
100BZ47.5716407204280380421205216946305820
100BZ4117274072152803774312052261023330865
100BZ411H7274072152803774312052261023330865


Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately

Dimensions - guide rail fitting type in mm:

ModelAA1A2A3A5A6DD1D2HH1H2M1M2W1W2
80BZ41.543931012925016525827313314064680515600500250605
100BZ42.243931012925016527027313314064680515600500250605
100BZ43.747332015326016527028913915069685515600500250655
100BZ45.56494452043301812864071912169141210112950700295780
100BZ47.56494452043301812864071912169351248112950700295805
100BZ41166044521535018128642820222610161312113950700330860
100BZ411H66044521535018128642820222610161312113950700330860
  • 100BZ411
  • 100BZ411H
  • 80BZ41.5
  • 100BZ42.2
  • 100BZ43.7
  • 100BZ45.5
  • 100BZ47.5

W1: lowest running water level
Dischcharge bore mmdT2T3T4T5T6T7T8T9T10T11K1K3K4K5B1B2B3
80mm80230195805022025060252850170155154029023715
100mm100230195805022025060252832170155154029023715
