PNI multi-purpose pumps have adopted stainless steel where metal must be used, while other strategic components are molded in or armoured with high tech resins. Durable, stable in operation and compact.
You are here:
- Slovenija >
- Industrial & Wastewater >
- Sewage Pumps >
- PNI
PNI | 1-phase / 50Hz
| Model | Colour code curve | Bore mm | Power output kW | Phases | r.p.m. | Head max. m | Capacity max. l/min | Starting method | free standing | with guide rail fitting | Impeller passage mm |
|---|---|---|---|---|---|---|---|---|---|---|---|

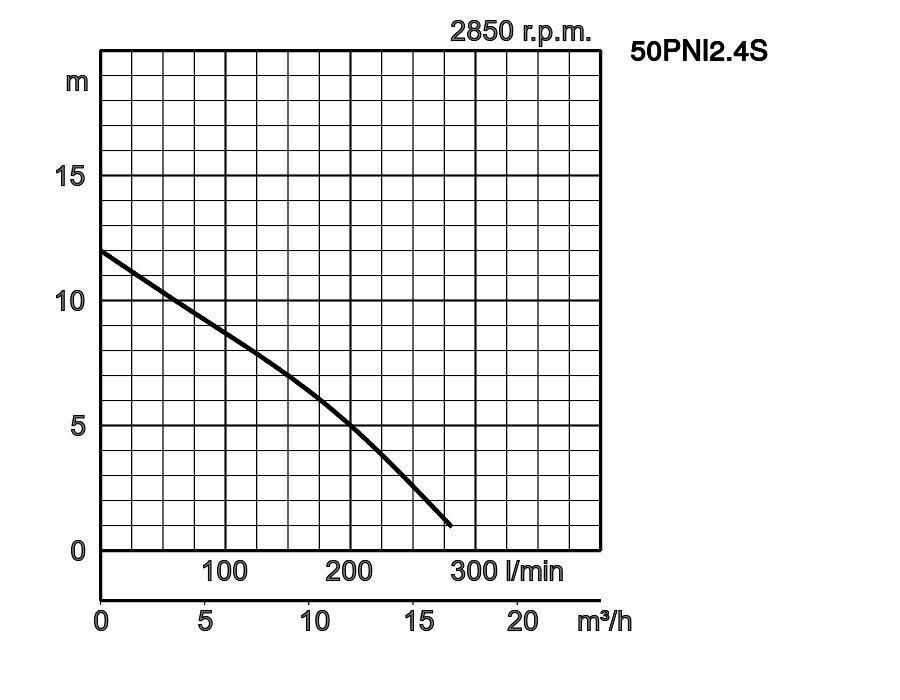

| 50PNI2.4S | 50 | 0,4 | 1 | 2850 | 12,0 | 280 | condensor | 7,4 | - | 10 | |

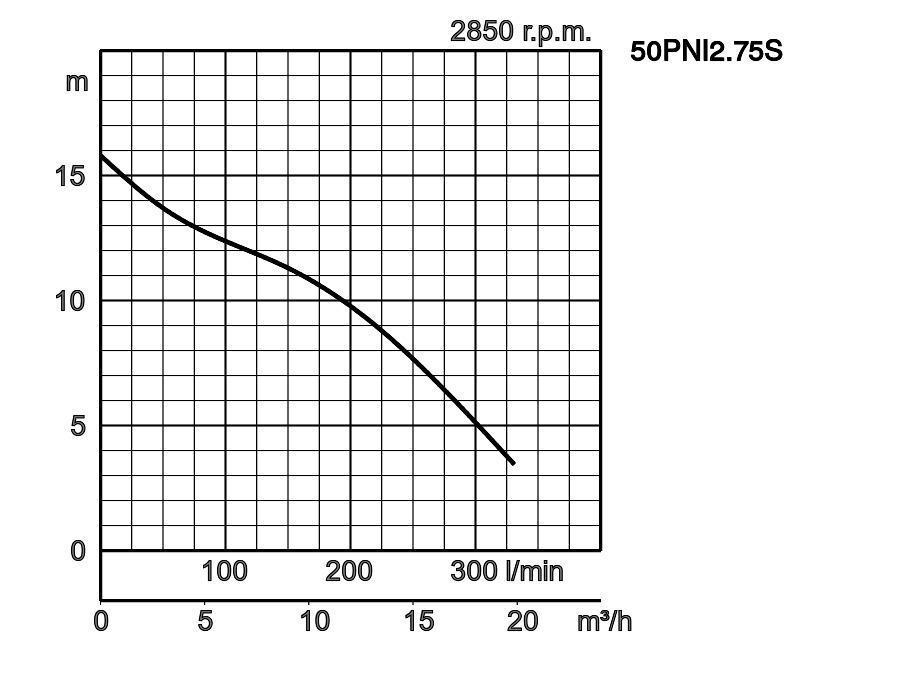

| 50PNI2.75S | 50 | 0,75 | 1 | 2850 | 15,8 | 330 | condensor | 9,5 | - | 10 |
50PNI2.4S_1.pdf
| ø Discharge bore mm | 50mm | |||
|---|---|---|---|---|
| Pumping Fluid | Type of Fluid | Municipal sewage, water with solids | ||
| Temperature | 0-40°C | |||
| Pump | Compo- nents | Impeller | Vortex impeller | |
| Shaft Seal | Double mechanical seal | |||
| Bearings | Shielded ball bearings | |||
| Material | Impeller | Glass fibre reinforced plastic | ||
| Upper casing | Glass fibre reinforced plastic | |||
| Lower casing | Plastic | |||
| Shaft Seal | Silicon carbide in oil bath | |||
| Motor | Motor Protector (built-in) | Miniature protector, Circle thermal cut-out | ||
| Phase / Voltage | Single phase 230V / 50Hz | |||
| Lubrication | Turbine oil (ISO VG32) | |||
| Type, Poles | Induction motor, 2 poles, IP68 | |||
| Insulation | Insulation class E | |||
| Material | Casing | Stainless steel EN-X5CrNi18-10 | ||
| Shaft | Stainless steel EN-X6Cr13 | |||
| Cable | Rubber, 10m H07RN8-F | |||
| Discharge Connection | Inside thread, flange | |||
| Optional Accessories | Guide rail fitting "TOK" for small pumps | |||
Dimensions in mm:
-
-
- 50PNI2.4S
- 50PNI2.75S
W1: lowest running water level
| Model | A | A1 | A2 | B | D | D1 | D2 | H | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 50PNI2.4S | 241 | 120 | 81 | 102 | 246 | 76 | 170 | 360 | 110 | 325 |
| 50PNI2.75S | 241 | 120 | 81 | 102 | 246 | 76 | 170 | 380 | 110 | 345 |
Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately
