POMA | 1-phase / 50Hz

With a light fibre-reinforced plastic casing and head cover, the pump is abrasion and corrosion resistant, minimizing maintenance.

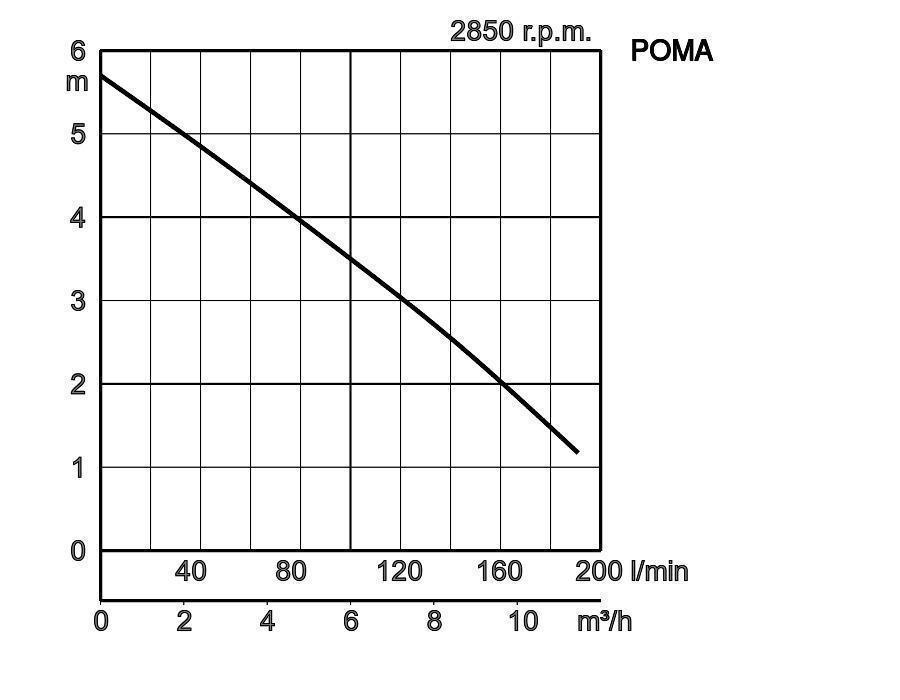

Performance curves & Specifications Material Dimensions Application reports

Model	Colour code curve	Bore mm	Power output kW	Phases	r.p.m.	Head max. m	Capacity max. l/min	Starting method	free standing	Impeller passage mm
POMA	1 print POMA_1.pdf	50	0,15	1	2850	5,25	205	condensor	5,5	35

ø Discharge bore mm			50mm
Pumping Fluid	Type of Fluid		Domestic sewage
Pumping Fluid	Temperature		0-40°C
Pump	Compo- nents	Impeller	Vortex impeller
		Shaft Seal	Double mechanical seal
		Bearings	Shielded ball bearings
	Material	Impeller	Glass fibre reinforced plastic
		Upper casing	Glass fibre reinforced plastic
		Lower casing	Plastic
		Shaft Seal	Silicon carbide in oil bath
Motor	Type, Poles		Induction motor, 2 poles, IP68
	Insulation		Insulation class E
	Lubrication		Turbine oil (ISO VG32)
	Phase / Voltage		Single phase 230V / 110V / 50Hz
	Motor Protector (built-in)		Circle thermal cut-out
	Material	Casing	Stainless steel EN-X5CrNi18-10
		Shaft	Stainless steel EN-X5CrNiMo17-12-2
		Cable	Rubber, 10m H07RN8-F
Discharge Connection			Inside thread, flange

W1: lowest running water level

Model
POMA

Please mind: discharge bend, duck foot bend and stand set are accessories and must be ordered separately
